Automating the lifecycle of virtual machines is one of the core benefits of modern infrastructure management. Instead of manually creating and configuring VMs through the vSphere client, we can leverage tools like Ansible combined with GitLab CI/CD to define everything as code and execute it automatically.

By integrating Ansible playbooks into a GitLab pipeline, we can standardize VM deployment, make it repeatable, and reduce the time needed to provision new resources. This approach also improves consistency across environments, since every VM is created using the same predefined logic.

In this lab, I demonstrate how to use GitLab CI/CD and Ansible to deploy virtual machines in VMware vCenter. The entire VM specification — including CPU, memory, disk, network configuration, hostname, and IP address — is defined through variables in the Ansible playbook. Once the pipeline runs, the VM is provisioned in a consistent and fully automated way.

The goal is to provide a clear, step-by-step example of how infrastructure automation can be achieved in a VMware environment, and how CI/CD principles can be applied to daily infrastructure operations.

About Ansible and GitLab CI/CD

Ansible is an open-source automation tool widely used for provisioning, configuration management, and application deployment. It works with a simple, human-readable syntax (YAML playbooks) and does not require agents on managed systems, making it easy to adopt and integrate into existing environments. In the case of VMware, Ansible provides dedicated modules and collections (such as community.vmware) that allow direct interaction with vCenter to create, modify, or remove virtual machines.

GitLab CI/CD is a continuous integration and continuous delivery platform integrated into GitLab. It allows us to define automated pipelines that run whenever changes are pushed to a repository. By combining GitLab CI/CD with Ansible, infrastructure tasks like deploying new VMs can be triggered directly from version-controlled code, ensuring consistency, repeatability, and traceability of every change.

Prerequisites

To build this lab, we will need the following main components:

1. vSphere Environment

• A vCenter Server with sufficient permissions to clone virtual machines and apply customization.
• At least one ESXi host that provides compute and storage resources.
• A Linux VM template (for example Ubuntu 22.04) prepared with:
  • open-vm-tools installed (to allow VMware guest customization).
  • SSH service enabled.
  • A dedicated user account that Ansible can connect to.
  • (Optional) cloud-init for advanced automation, but not strictly required.

2. Ansible and GitLab CI/CD Environment

In this lab, both Ansible and GitLab (including the GitLab Runner) are installed on the same Linux server. This keeps the environment simple: the same machine will host the automation engine (Ansible) and the CI/CD orchestrator (GitLab).

Step one: Install GitLab

First, install GitLab Community Edition. On Ubuntu/Debian, we can do this:

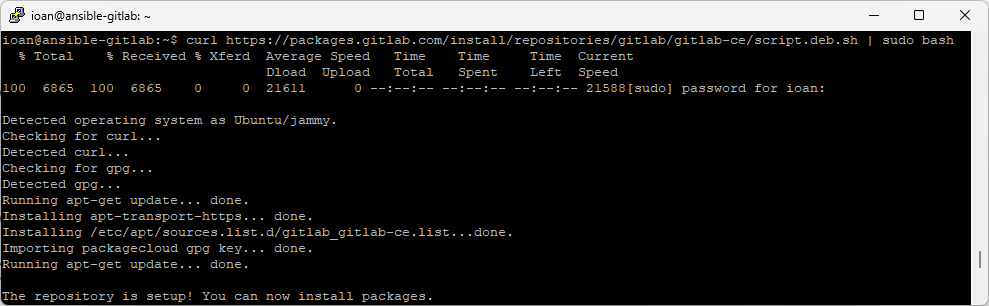

# Add GitLab package repository
curl https://packages.gitlab.com/install/repositories/gitlab/gitlab-ce/script.deb.sh | sudo bash

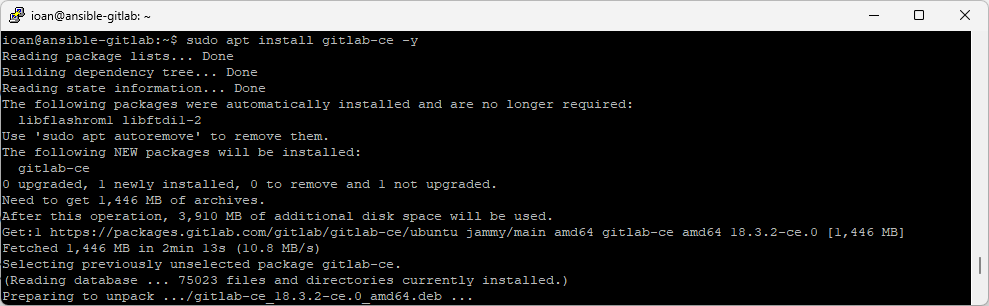

# Install GitLab CE
sudo apt install gitlab-ce -y

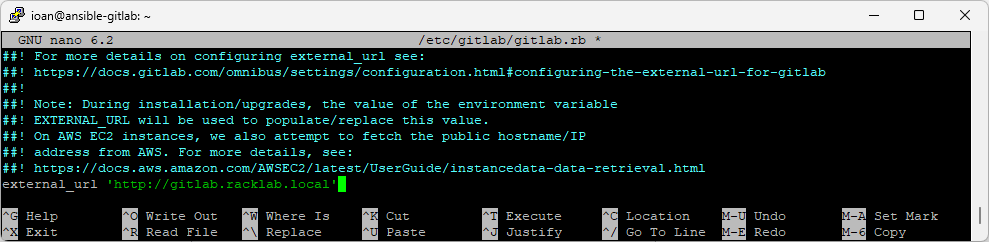

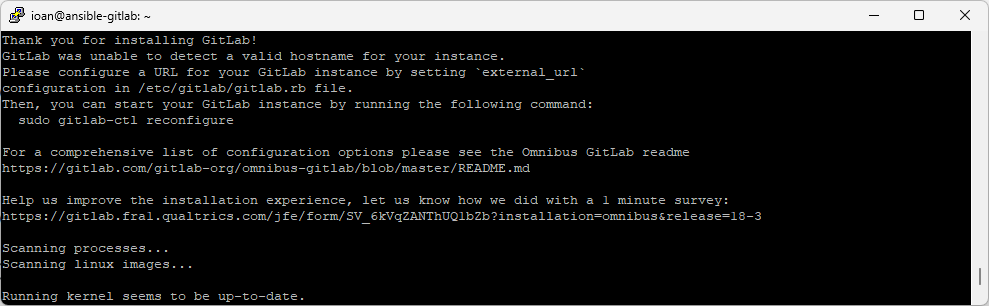

After installation, configure GitLab: as mentioned above, I’ve changed the external_url to “http://gitlab.racklab.local” and added the FQDN to my local DNS

# Reconfigure GitLab services
sudo gitlab-ctl reconfigure

By default, GitLab will be accessible at http://<server-ip> on port 80.
The initial root password is stored in /etc/gitlab/initial_root_password.

Step two: Install GitLab Runner

The GitLab Runner executes CI/CD jobs. Install it on the same server:

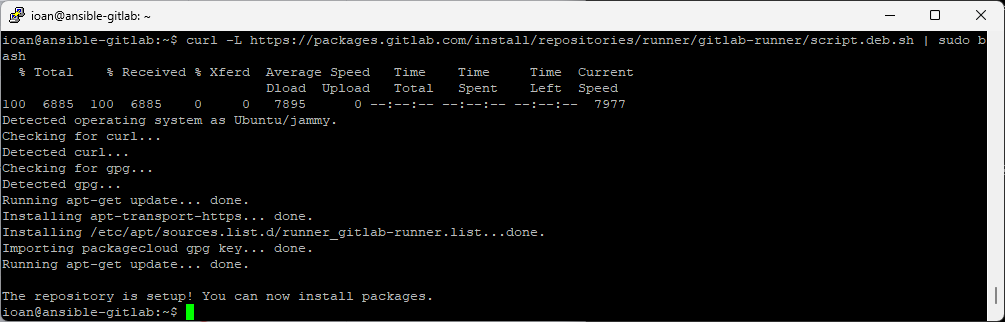

# Add GitLab Runner repository
curl -L https://packages.gitlab.com/install/repositories/runner/gitlab-runner/script.deb.sh | sudo bash

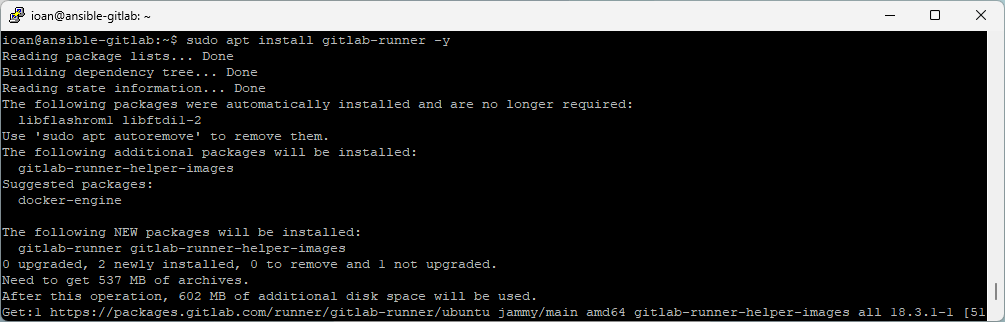

# Install runner
sudo apt install gitlab-runner -y

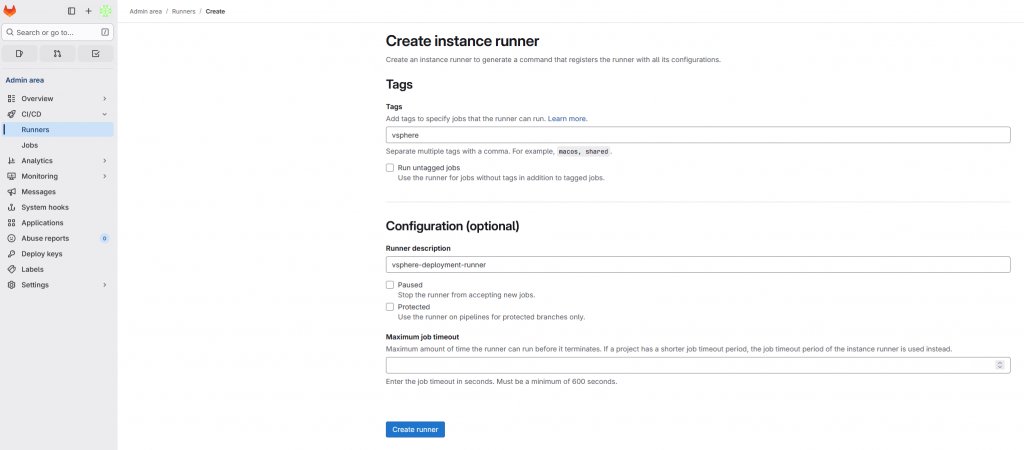

Create Runner in GitLab (from GitLab UI → Admin → Runners → Create instance runner) and add Tags and Runner description (optional)

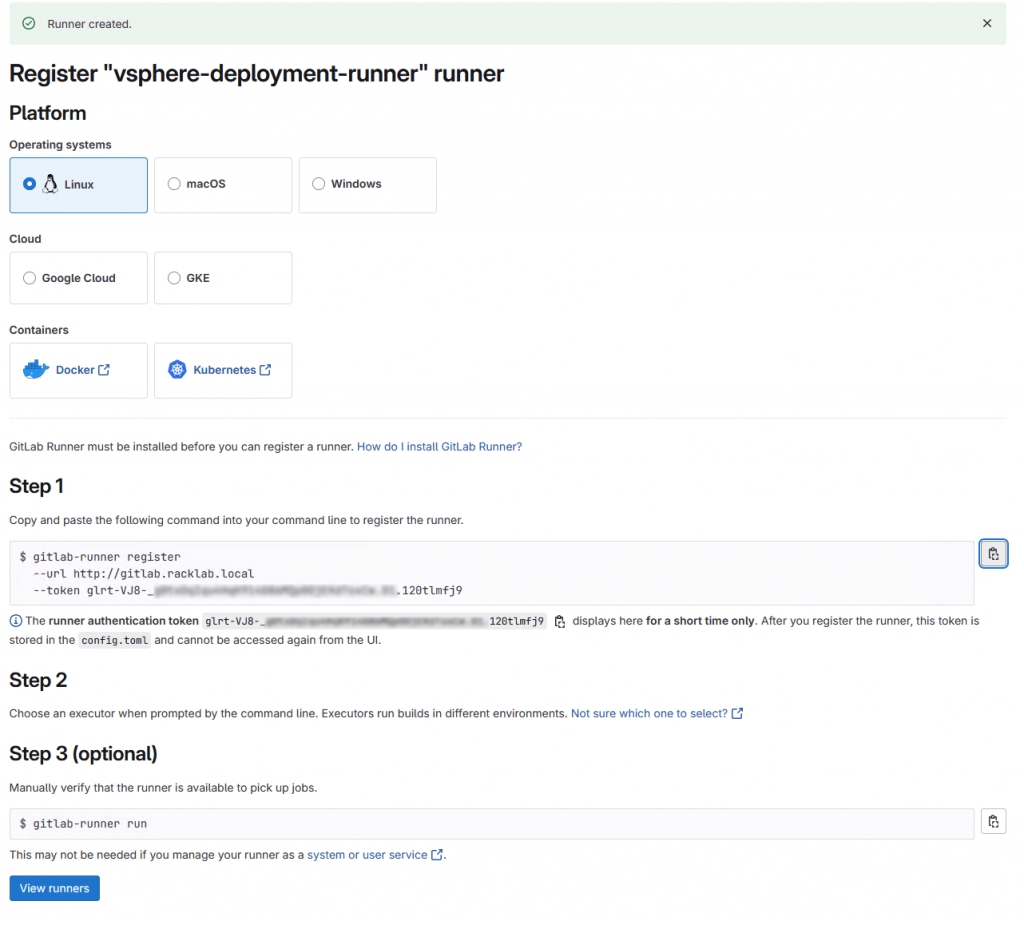

We register the runner with our GitLab instance – folow Step 1 in picture bellow.

Copy and paste the command from Step 1 into the command line

Step three: Install Ansible

Ansible will run playbooks against vCenter. Install it via apt:

sudo apt update
sudo apt install ansible -y
ansible --version

Step four: Install VMware-related dependencies

To manage vSphere with Ansible, we need extra Python modules and Ansible collections.

1. community.vmware collection:
This contains modules like vmware_guest that allow VM deployment.

ansible-galaxy collection install community.vmware

2. pyhon3-pip package manager for Python:

sudo apt update
sudo apt install python3-pip -y
pip3 --version

3. pyVmomi library:
The official Python SDK for the VMware vSphere API.

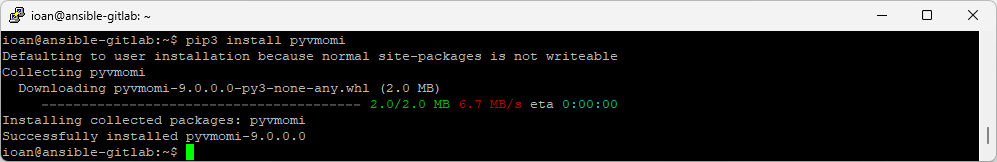

pip3 install pyvmomi

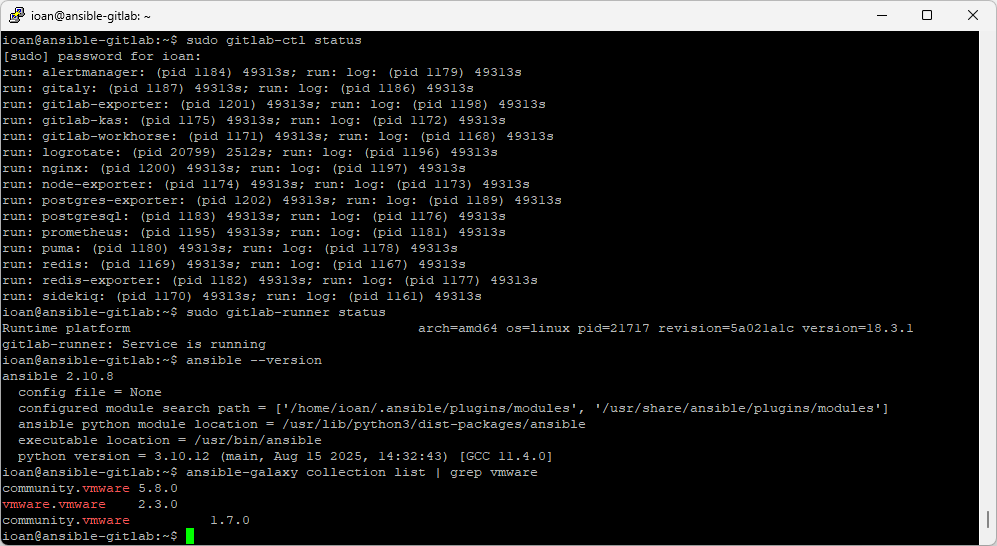

Step five: Verify environment

Check that all pieces are in place:

# GitLab status
sudo gitlab-ctl status

# GitLab Runner status
sudo gitlab-runner status

# Ansible version and VMware collection
ansible --version
ansible-galaxy collection list | grep vmware

Conclusion

At this stage, the lab environment is fully prepared:

• GitLab is up and running, accessible via the web interface.
• GitLab Runner has been installed and registered successfully, ready to execute CI/CD jobs.
• Ansible is installed on the same server, along with the required VMware dependencies (community.vmware collection, pyVmomi).

This foundation allows us to combine GitLab CI/CD with Ansible to automate VM lifecycle management directly in vCenter.

What’s next

In the next post, we will:

• Build Ansible playbooks that define how VMs are deployed and customized.
• Organize VM configuration into structured files for reusability and scalability.
• Integrate these playbooks into a GitLab pipeline so VM deployment can be triggered automatically or on demand.

This is where the real automation begins — turning our prepared lab into a reproducible workflow for provisioning and configuring VMs on vSphere.
